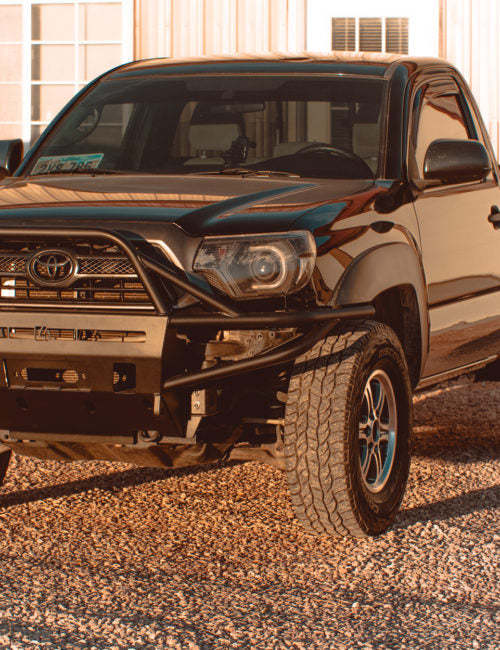

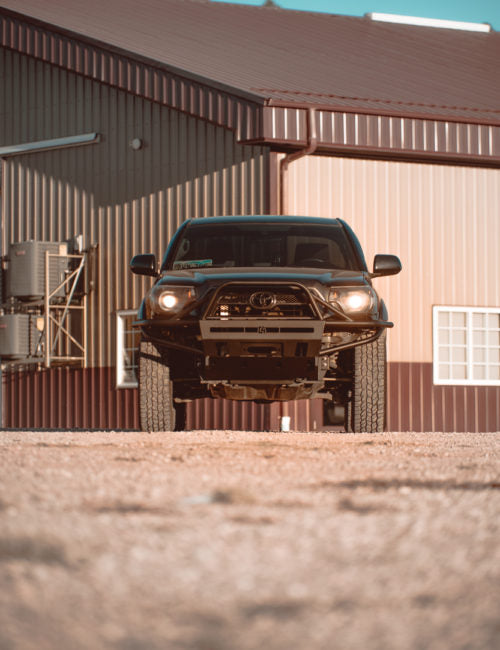

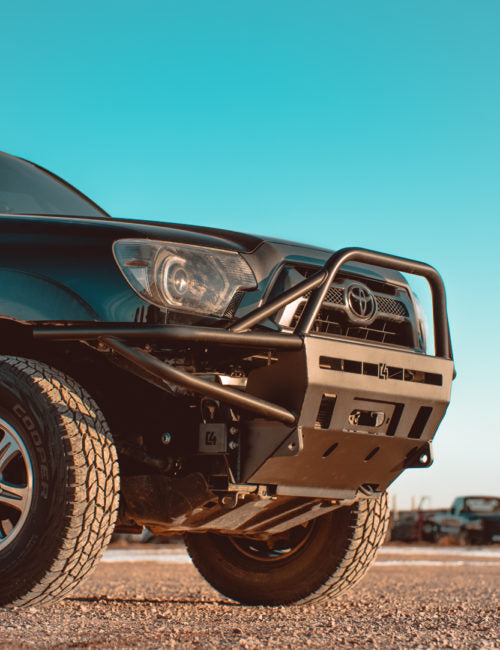

C4 Fabrication Hybrid Front Bumper (2012-2015)

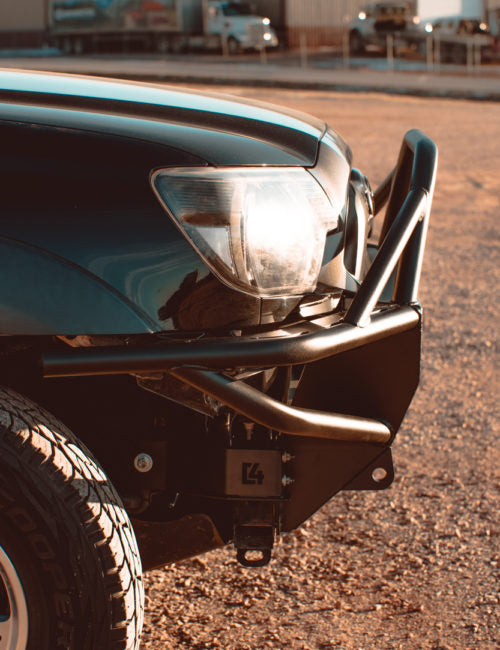

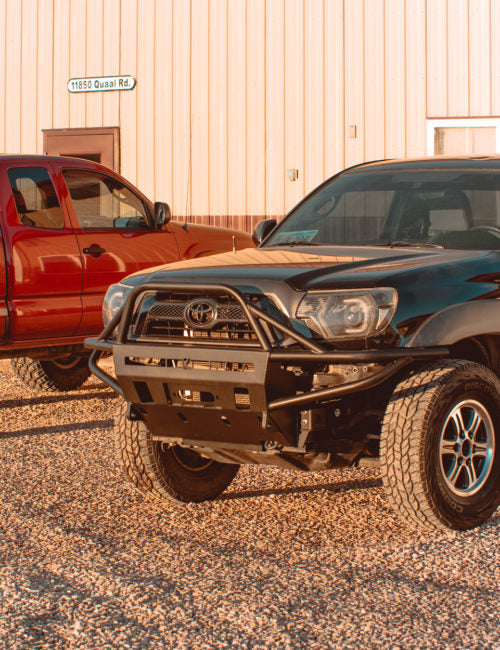

C4 Fabrication Hybrid Front Bumper
- Bumper is 100% bolt on. Minor trimming of the Sheetmetal bracket under the headlights is required. No welding or plastic bumper cutting required for installation.-All bumpers are winch compatible.

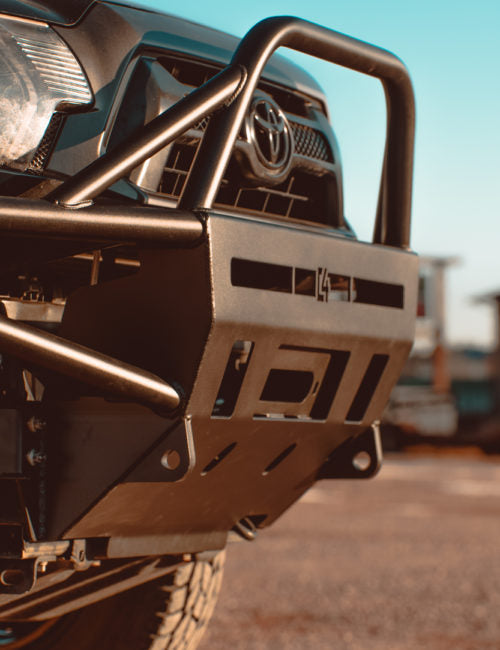

- Bumper has cutouts in the front to allow access to winch rope and clutch lever.
- Fits 8k-12k winches. (ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
- Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD, 1/8″ wall thickness.

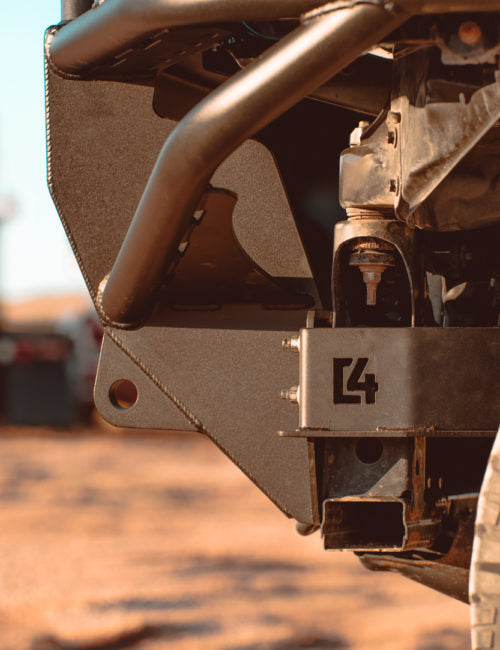

- 3/4″ thick D-ring shackle points standard.

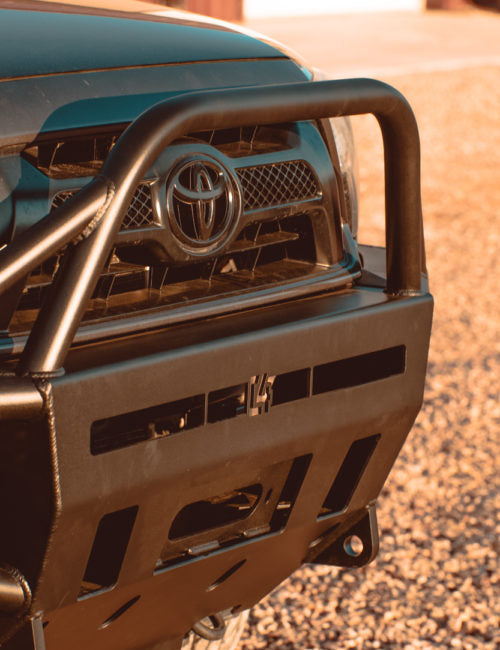

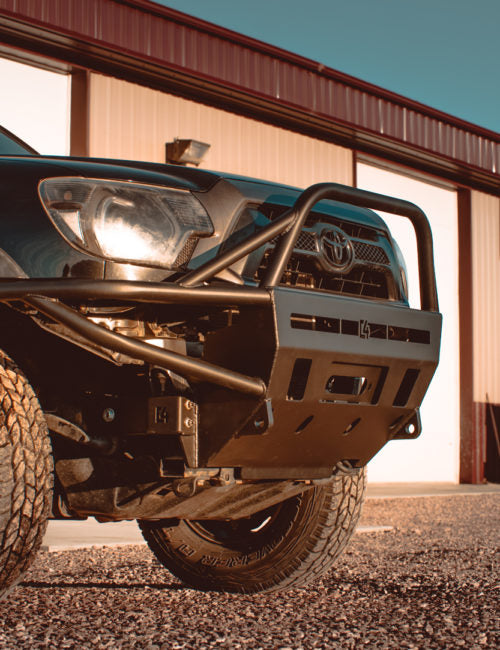

- Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.

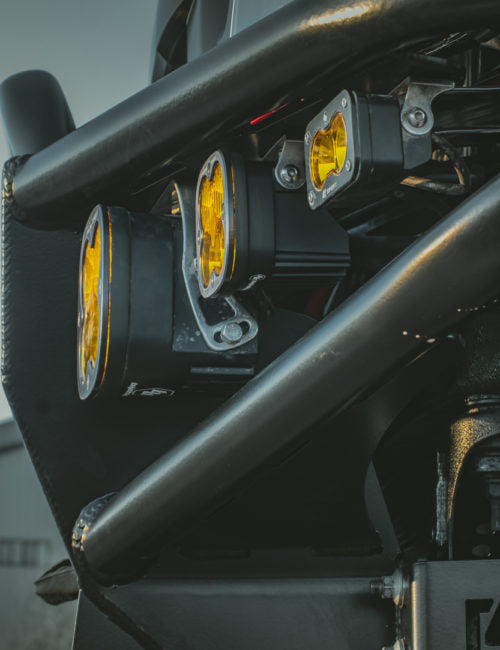

- Bumper fits 30″ single row light bar (designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit. Other brands not guaranteed to fit perfectly.
- Additional frame support brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($105.00 value).
- SHIPS BARE STEEL, C4 does not offer powder coating services. Bumper will need to be painted or powder coated before installation to prevent rust.
- Please allow 1-4 weeks for production time.
