Diode Dynamics Hidden Grille Light Bar Kit For Tacoma (2016-2023)

18 reviews
In stock


FEATURES: Direct fitment on 2016+ Toyota Tacoma. Allows you to mount one 30" light bar in the lower grille opening. CAD-designed for perfect fitment and OEM-like appearance. Utilizes existing mounting points for easy installation - no cutting or drilling required. Highly durable powdercoated steel construction. Plug-and-play wiring harness included to power light bars.

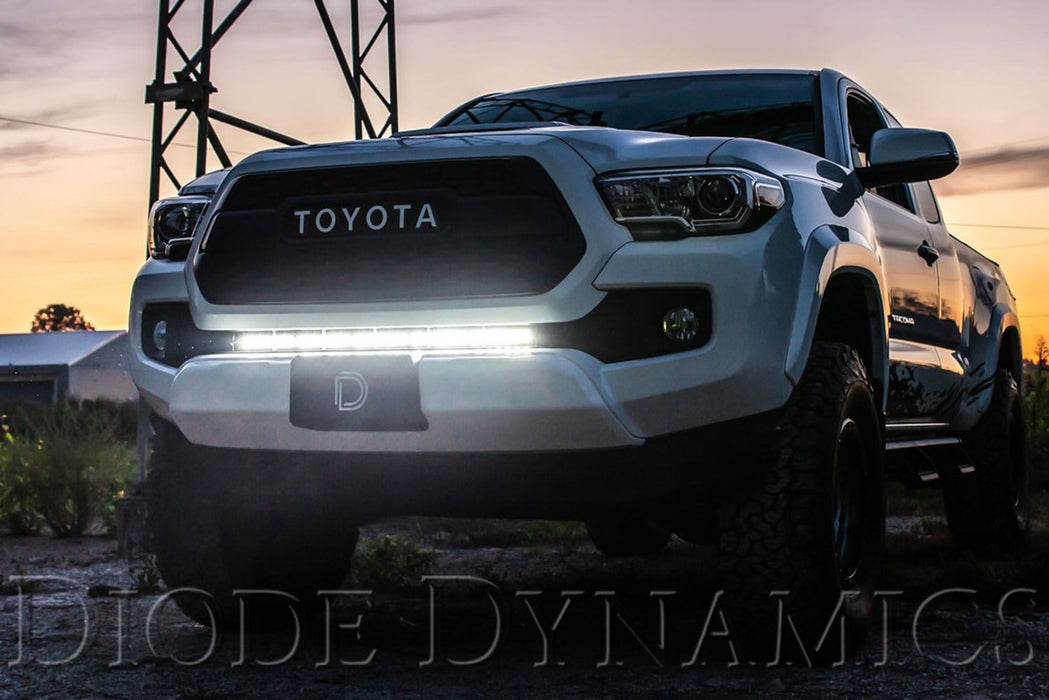

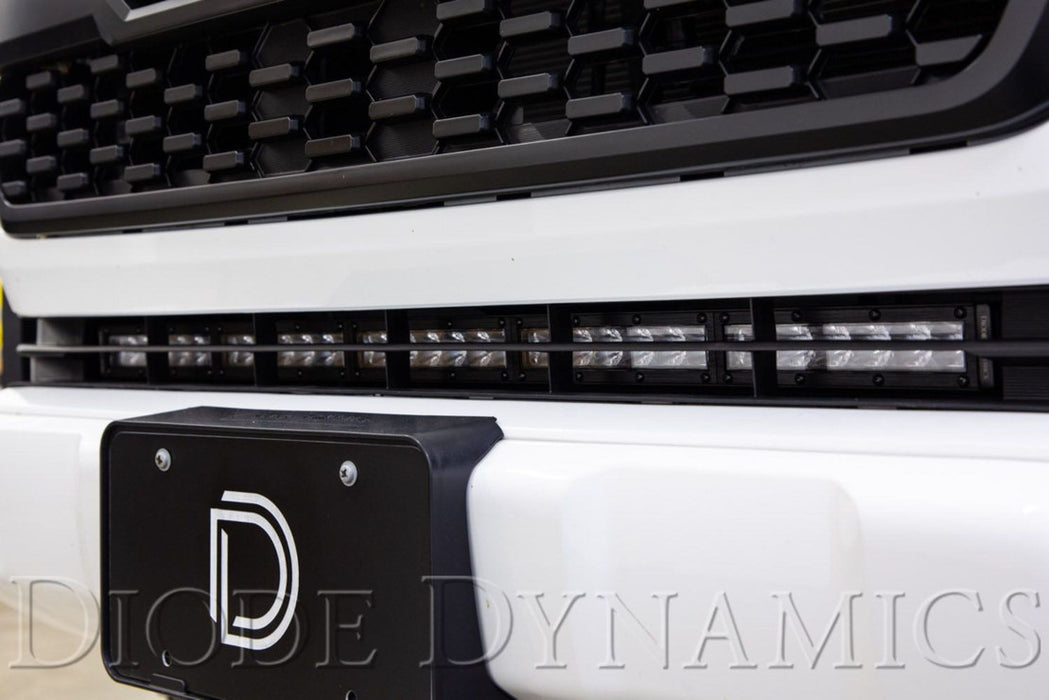

PERFECT FITMENT: The Stealth LED Light Bar Kit for the 2016+ Toyota Tacoma from Diode Dynamics allows you to easily mount a 30" light bar in the factory lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance. Additionally, if preferred, the lower grille can be modified to make the light bar more visible.

DESIGNED FOR PERFORMANCE: Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

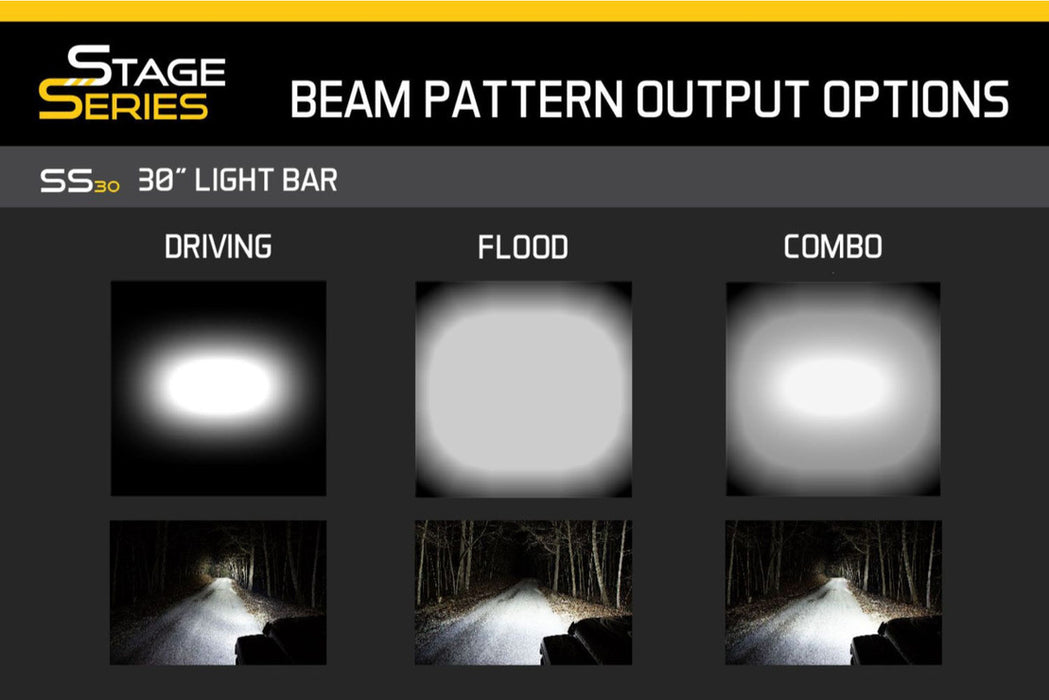

FUNCTIONAL PATTERNS: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds. The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite. The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

MADE IN THE USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your car or truck.


  • 2X: Application-Specific Heavy-Duty Steel Brackets for Installation on 2016+ Toyota Tacoma

  • 1X: SS30 Stage Series 30" Light Bar

  • 1X: Heavy Duty Single-Output Harness

  • HARDWARE: All Necessary Hardware

  • 1X: Installation Guide

  • QUANTITY: One (1)

  • WARRANTY: 3 year warranty

  • 100%: Satisfaction Guarantee


  • MAKE: Toyota

  • MODEL: Tacoma

  • YEARS: 2016+

  • ELECTRICAL COMPATIBILITY: No electrical issues (tested and confirmed)


  • COLOR TEMP (CCT): 2000K, 6000K

  • BEAM ANGLE: Driving, 20degx8deg, Combo (Driving and Flood), Flood, 80degx50deg

  • POWER (WATTS): 137.2


  • CURRENT (AMPS @ 13.2V): 9.8

  • POLARITY: Polarity Specific

  • OPERATING TEMPERATURE: -40C to 85C (-40F to 185F)

  • LED EMITTER: Luxeon Z ES

  • CONNECTOR(S): Deutsch DT Input

  • MATERIALS: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

  • COOLING: Passive, heatsink

  • INTRUSION RATINGS: IP68 Waterproof

  • PRODUCT DIMENSIONS (IN): 31x3x1.63
