Ironman 4x4 Raid Front Bumper Kit For Tacoma (2016-2023)

Ironman 4x4 Raid Front Bumper Kit For Tacoma (2016-2023)

$999.00
In stock

The world's first fully crash safety tested and SRS airbag compatible tubular style bumper to suit 3rd gen 2016-2023 Toyota Tacoma.

Leveraging our experience of designing and manufacturing vehicle armor for military, fleet, and recreational purposes, the mission was to create the safest, most feature-loaded 4x4 steel Tacoma bumper on the market.

The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective Tacoma bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability._

The Ironman 4x4 Raid front bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (5,000kg/11,000lbs) give you a concrete foundation for recovery or towing._

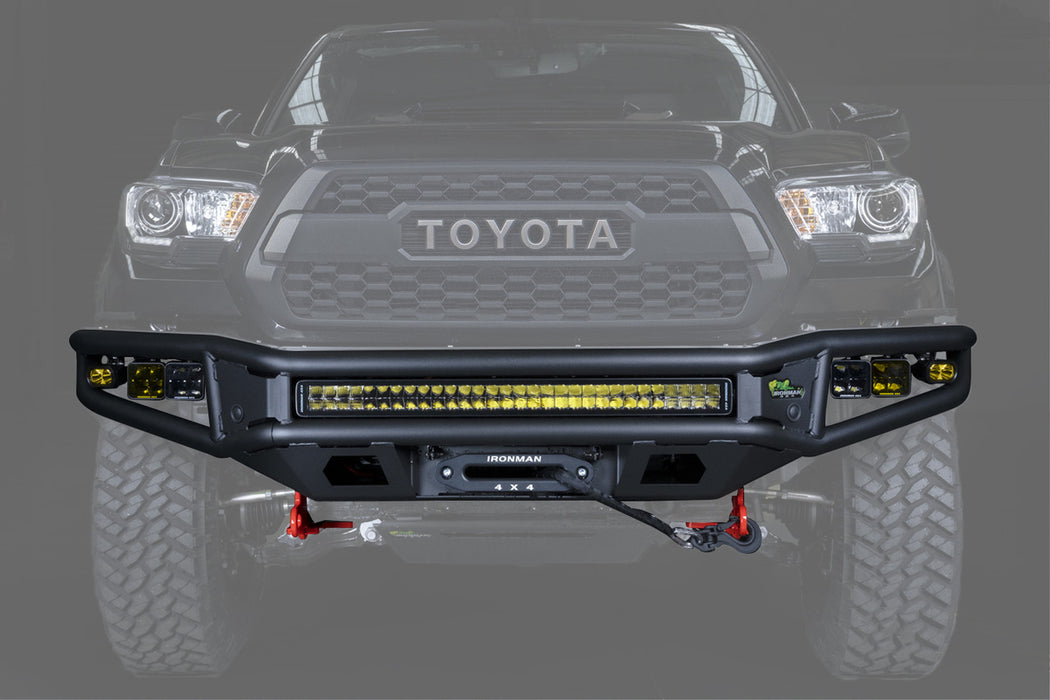

The Raid off-road steel bumper can come fully loaded with a 32", 300W dual row OSRAM chip LED light-bar delivering projection of 25000 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

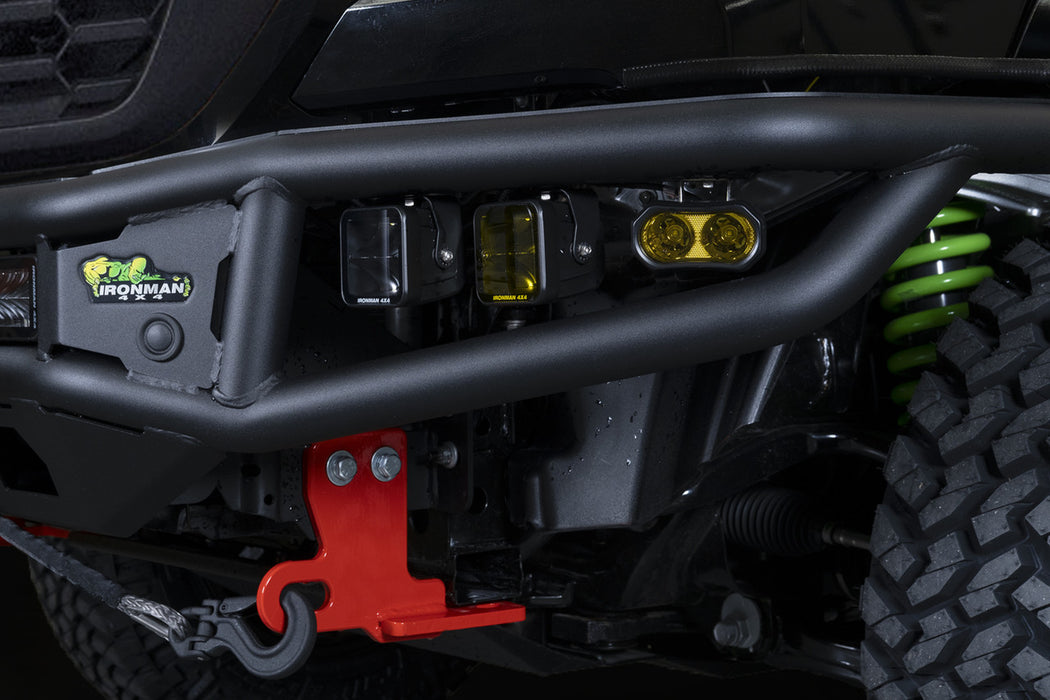

In addition to the powerful light-bar are four customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.

Features:

  • Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
  • Bolt-on, frame-mounted recovery points (5,000kg/11,000lbs) included with the bumper
  • Integrated crumple zones transfer energy away from vehicle occupants
  • ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
  • Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
  • Winch compatible with clutch handle access and line visibility
  • Standard 10” x 4.5” winch mount footprint
  • Pickled, cold-rolled steel manufacturing for impurity free template during assembly
  • Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
  • 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
  • Increased approach and departure angles provide maximum clearance for obstacles
  • Compatible with factory parking sensors

Notes:

  • Weight: 123 lbs
  • Bolt-on installation
  • Requires minimal trimming to front fender plastics
  • TRD skid plates require some modifications and extra hardware not included
  • Does NOT fit 2WD models
  • Works with synthetic rope winches only
  • Does NOT work with roller fairleads
  • Does NOT include wiring harness

BBR072K
