KTJO One Touch Multifunctional Smart Window Control System For Tacoma (2016-2018)
Toyota Tacoma One Touch Multifunctional Smart Window Control System (2-Auto) is for Tacoma with driver-side and passenger-side window auto only. This system enables you to control your window's motion up and down automatically. Toyota Tacoma One Touch Multifunctional Smart Window Control System (1-Auto) is for Tacoma with driver-side window auto only. This system enables you to control your window's motion up and down automatically.
With this "One Touch" feature, you are able to use your Power Window Master Switch (Driver) Panel for all (4-in-1) of the Windows as an ALL Auto Up/Down One Touch operating Power Window Master Switch Panel (Driver). Simply tap the factory Window Switch once and the window will travel all the way up or down. The need to continually "keep pressed" the Window Switch all the time in order to fully open or close the window is no longer necessary. With that said, you now have the added convenience of a 4-in-1 "One Touch" using ALL the (Passenger) Power Window Switch Panels for Auto Up/Down "One Touch" operating systems. All windows open and close completely with one press "One Touch". Once installed, on the inside of the Driver Kick Panel and OBDII, there is nothing else to it!
In addition, the other purpose of this is the ability to use your factory Key Fob to Open and Close your windows, as well as some added combination features. There is no need to Splice/Tap into your Trucks OEM Wires. This New Plug-N-Play Harness is made with all brand new material including Connectors, Terminals, and Wiring to directly connect and be an easy-to-install process with your Trucks Wire Harness located on the Driver’s Side Window Switch Panel.
In addition to the Automatic Up and Down features with the OEM Key Fob, you also get these combination features:
1. Auto Window Closing when Locking: Press Lock 2x on the Remote Control to Lock the Truck and it raises the windows after the Truck is powered off and all doors are shut.
2. Auto Window Opener when Unlocking: Press Unlock-Lock-Unlock on the Remote Control, the four windows will descend for the convenience of heat cooling.
3. Auto Window Closing Pause: Press Unlock on Remote Control to pause all windows from going up all the way.
4. Auto Window Opener Pause: Press Lock on Remote Control to pause all windows from going down all the way.
5. Auto Window Ventilation Pinch: Press Lock-Unlock-Lock on the Remote Control, the four windows will descend 2cm for the convenience of heat cooling. Repeat and windows will continue to descend an additional 2cm.
6. Auto All Window Up/Down One Touch: Press all 4 Switches in Driver’s Seat to operate as “One Touch” Up and Down Switches. They will Open, Close, and Pause All Windows with one click. Likewise, Press All Passenger Seat Switches and they operate as “One Touch” Up and Down Switches. They will Open, Close, and Pause Windows with one click.
7. Auto Window Opener Lock Mode: Press Unlock-Lock-Unlock on the Remote Control, the four windows will descend for the convenience of heat cooling. To activate just the Lock Mode Press Lock on the Remote Control to only Lock the Truck without Closing the Windows. The Windows of the Truck stay Open in Lock Status. Press Lock on the Remote Control a 2x and All Windows will Auto Close.
8. Waiting for Someone Mode: Press Unlock-Unlock-Lock on the Remote Control after the Truck is powered off and all doors are shut to Lock the Truck without raising the windows.
9. Flashing Warning: Open the door flashing light and reverse gear flashing light.

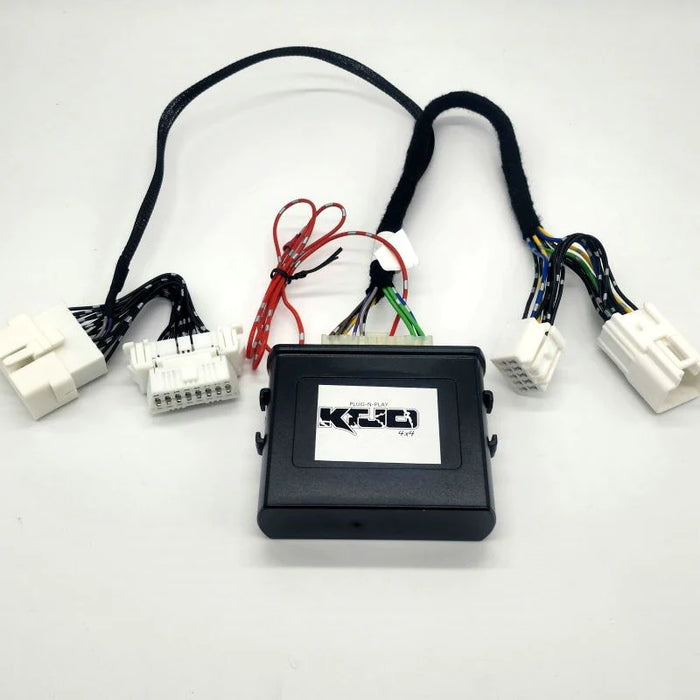

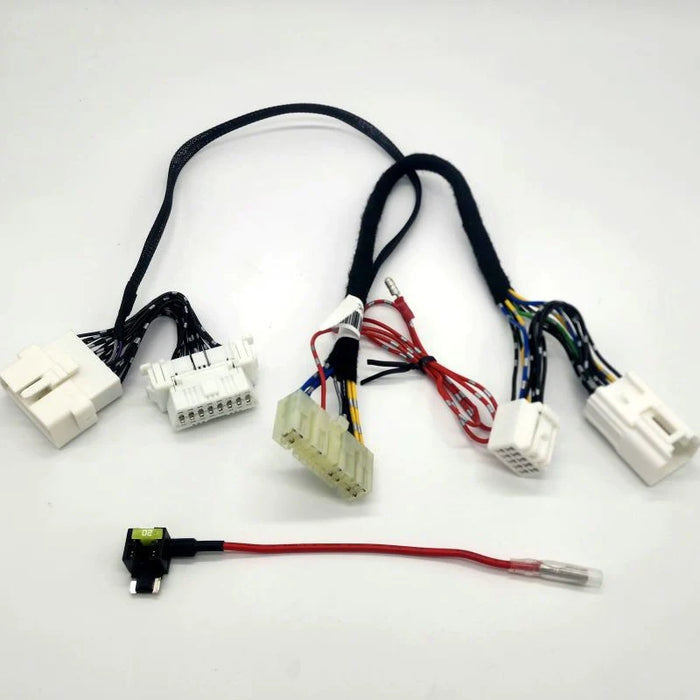

1 x Driver Plug-N-Play Wiring Harness

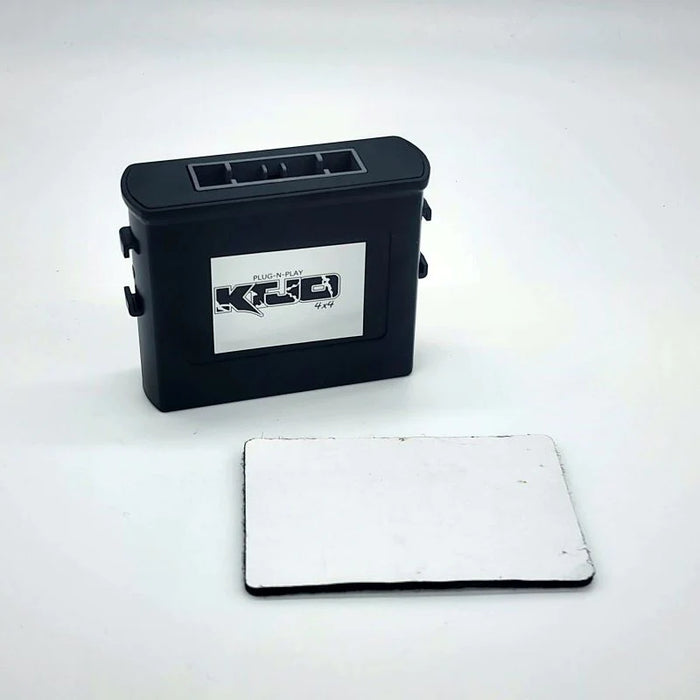

1 x Control Module
1 x 3M Mounting Pad
KTJO 4x4 and its vendors shall not be liable for any accident resulting from the use of this product. This product has been tested on 2017 Off Road (No Sunroof) and 2017 Sport (No Sunroof). This system is designed to be professionally installed into a vehicle in which all systems and associated components are in perfect working condition.
