KTJO Power Folding Mirrors For Tacoma (2005-2015)
The purpose of this feature is to add motorized functionality to the KTJO 4x4 2nd Gen Toyota Tacoma Auto Power Folding Mirrors. This is accomplished by adding an actuator inside the mirror and using the provided harness to plug into the factory wiring through the driver’s door and mirror adjust switch.
"Power Folding Mirrors - 2nd Gen Tacoma" is for those members that are willing and able to do so themselves, but just need the right parts. This Package includes everything you will need to install inside your OEM Mirrors.

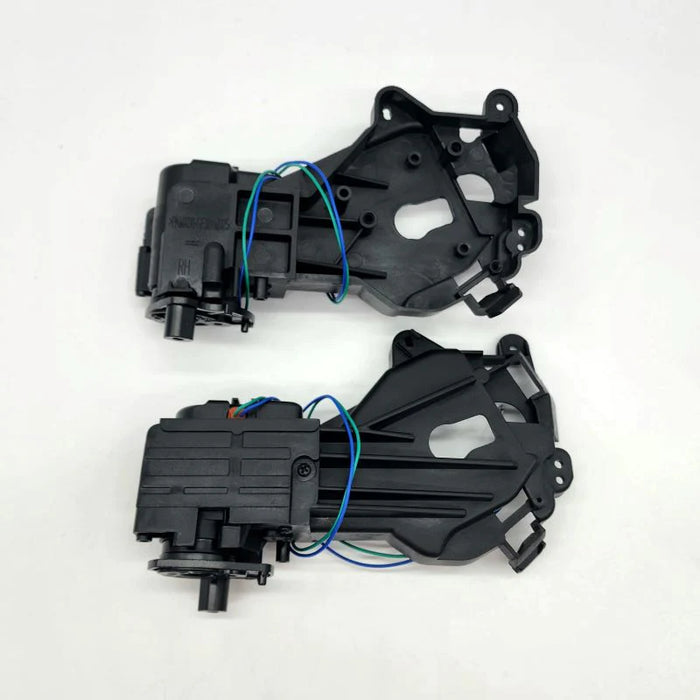

Included in the DIY Parts Kit:2x - Power Fold Actuator

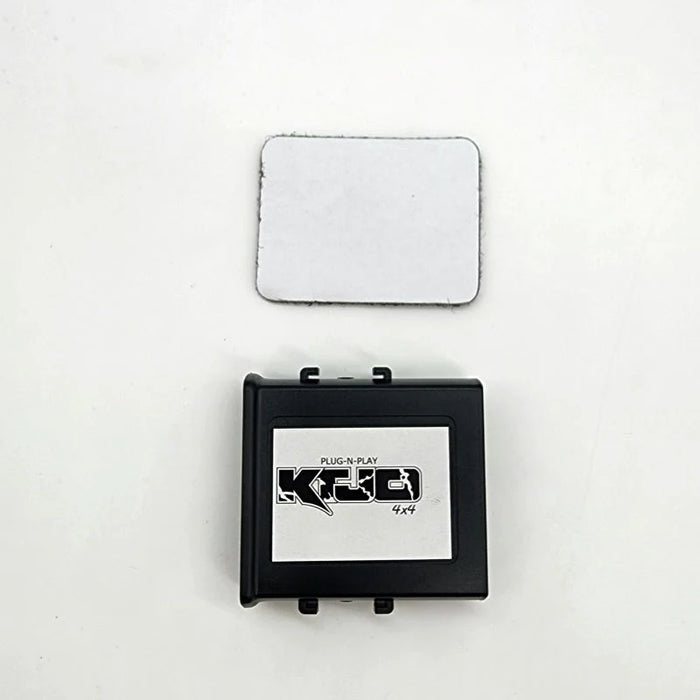

1x - Power Fold Motor Switch Extension Harness
All Hardware Included

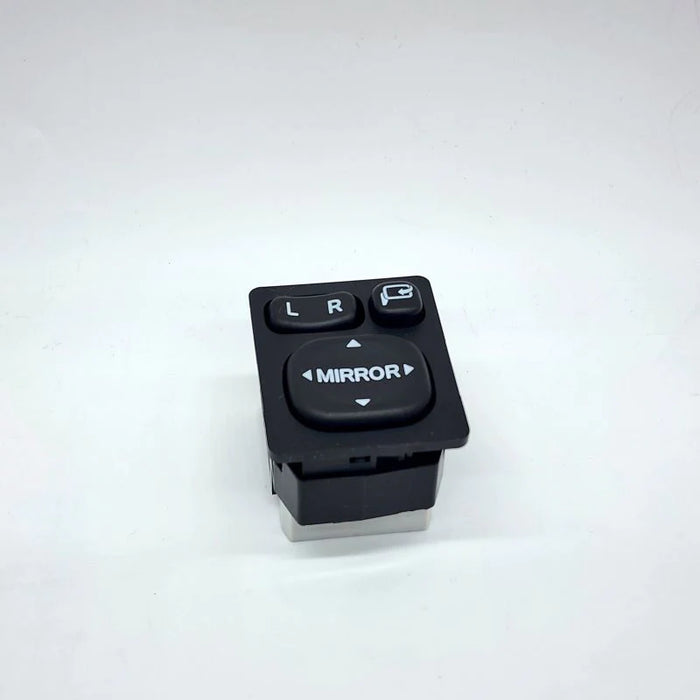

*Non-Illuminated Switch Included. You may upgrade to "LOWER ILLUMINATED" Switch or "FULLY ILLUMINATED" Switch
Parts that are going to need Modifying:
2x - Connection Plate
Outer Mirror will Automatically Fold when you lock your vehicle with your key fob. Likewise, Outer Mirror will Automatically Unfold when you unlock your vehicle with your key fob. When heading into a narrow parking space or garage, pressing the “FOLD” button on the side mirror control switch, just left of the steering column, mirror will Fold in towards the side windows. To put back into driving position, pressing the “UNFOLD” button will Unfold the Outer Mirror. If for some reason you would like to not have the Auto Folding Mirror Function Active, you simply press the “FOLD” button on your side mirror control switch prior to leaving your vehicle. This will deactivate the Auto Unfolding Mirror Function. Therefore, when you return to your vehicle, your Outer Mirror will not Automatically Unfold when you Unlock your vehicle with your key fob as your side mirror control switch is always primary when it comes to controlling your Power Folding Mirror. To put them back into driving position, again, pressing the “UNFOLD” button will Unfold the mirror. This feature is great for the winter months when your Outer Mirror may need to warm up prior to Unfolding.
The DIY Kit will REQUIRE removing the Mirror Glass and removing your connection plate that is located in inside of your OEM Mirrors. The New Connection Plate anchors on directly to the OEM Mirror hinge location and housing with the OEM hardware you removed from above and the included hardware after using the KTJO 4x4 POWER FOLDING MIRROR DIY KIT. This Wiring Kit is 100% Plug-N-Play.
CAUTION & WARNINGS:
BEFORE STARTING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, ENGINE / BODY COMPUTER, AND BATTERY).
DAMAGE RESULTING FROM IMPROPER INSTALLATION IS NOT COVERED UNDER WARRANTY BY KTJO 4X4 AND ITS VENDORS!!!!
KTJO 4x4 and its vendors shall not be liable for any accident resulting from the use of this product. This system is designed to be professionally installed into a vehicle in which all systems and associated components are in perfect working condition.
