[OPEN BOX] BillieBars Bed Rack For Tacoma (2005-2023)

Sale
Original price $640.00
Current price $544.00
Stock:
In stock

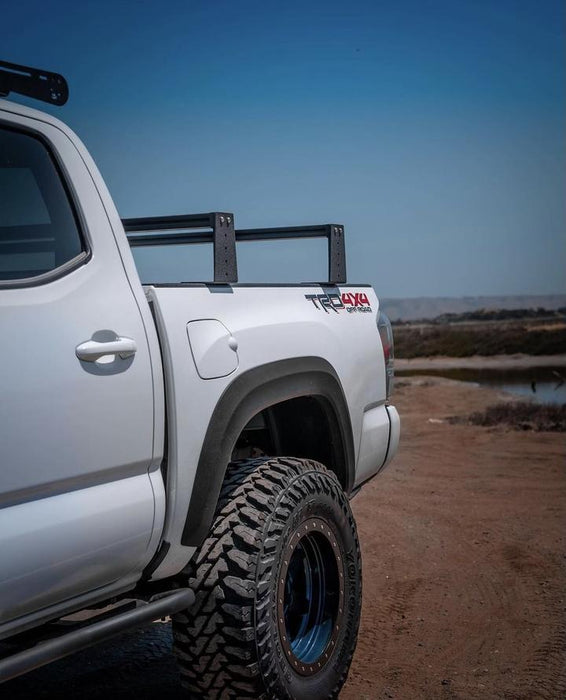

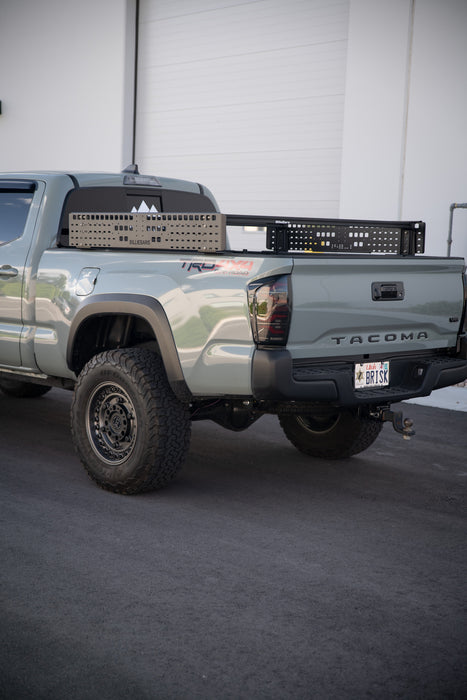

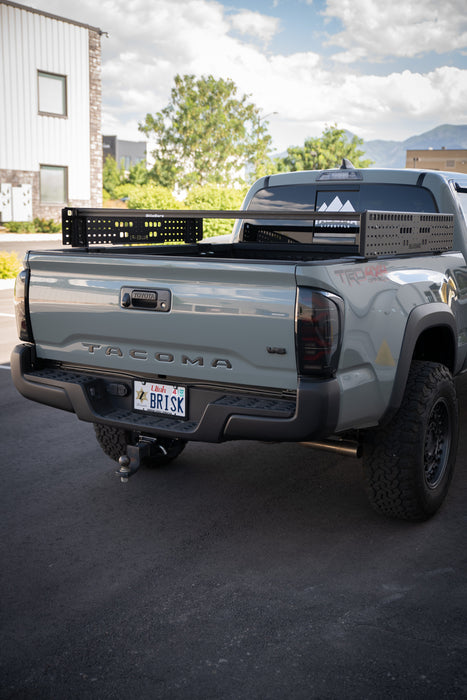

Yes, it's true. Finally, a bed rack that works with a bed cover. As you all know, the biggest downfall to a bed rack is losing the your much needed bed cover. Well, problem fixed with the BillieBars bed rack.

PLEASE NOTE THIS IS AN OPEN BOX ITEM! FINAL SALE, NO REFUNDS, NO RETURNS

PERFECT CONDITION, NO DAMAGE, WORKS LIKE NEW!

  • Easy Install: Install in Minutes
  • Made in The USA
  • Comes with Everything Needed

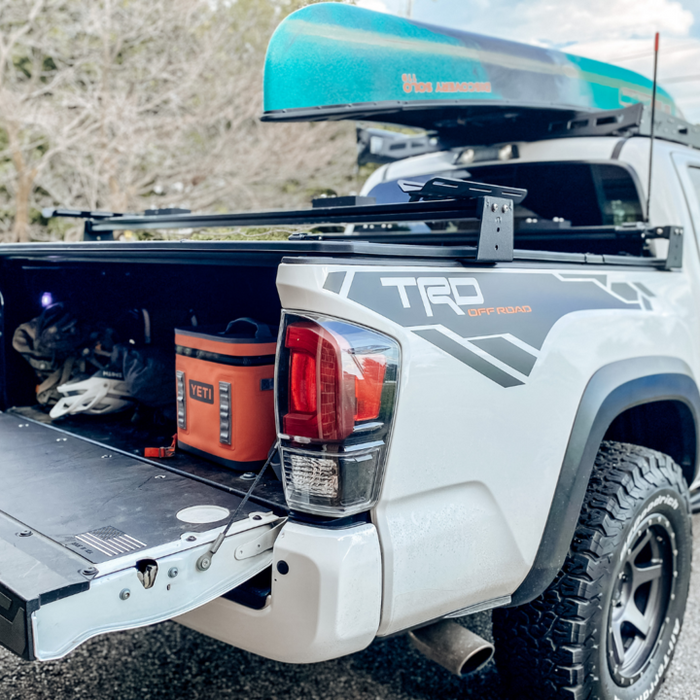

  • Fits with Bed Cover
  • Fast Delivery: 2-3 Weeks

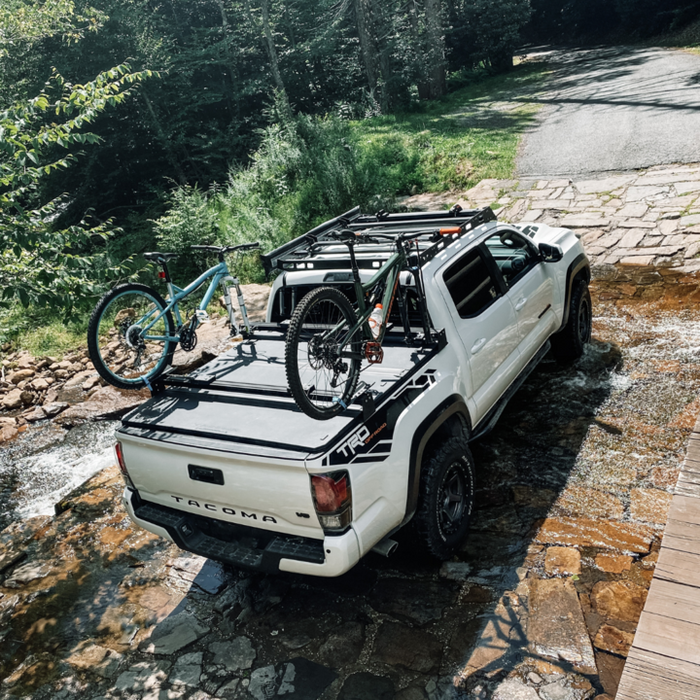

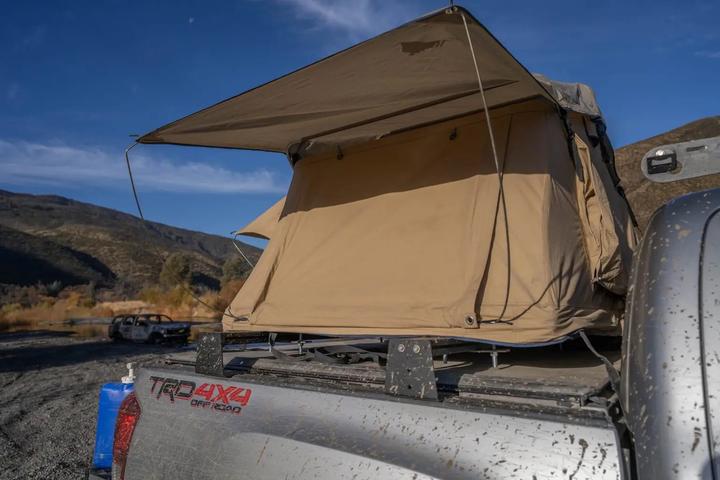

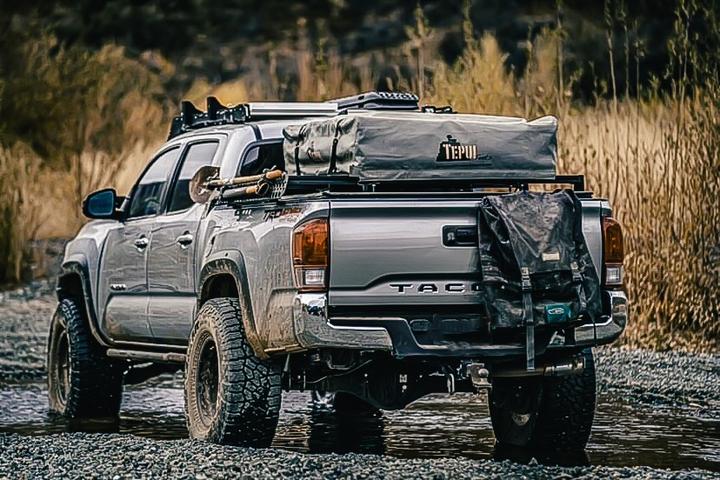

Designed and fabricated in USA; our goal was to design a set of Tacoma bed bars that work with a tonneau cover and create the strongest most versatile mounting system for our trucks. The thought was to have a universal design to mount anything from RTT’s, bikes, skis & snowboards, surfboards, lights, CB antennas, and more in any fashion the owner wants to.

We created the strongest bed bar mounting system out there that works with a cover. Designed in CAD utilizing finite element analysis.

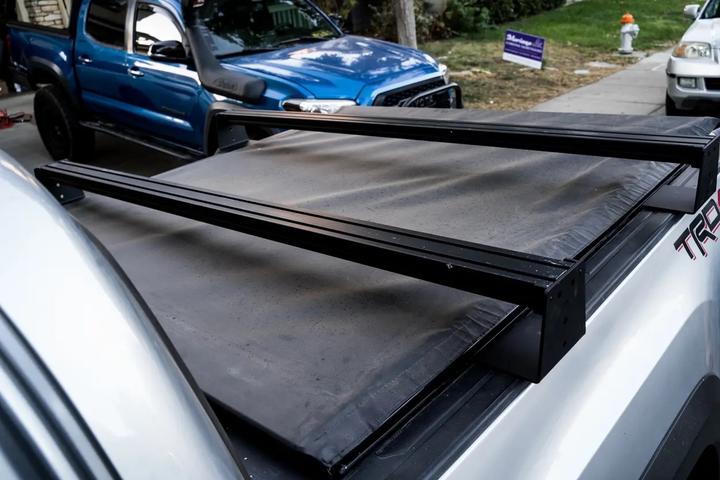

Cross Bars:

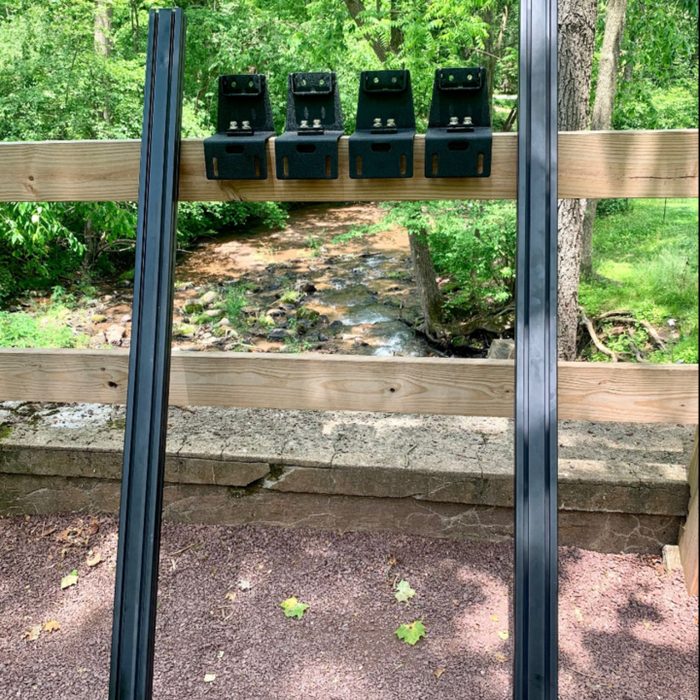

Cross bars are made from 80mmx40mm (3.15” wide x 1.57” tall) 6560-T6 aluminum double wide t-slot rails and anodized black. There are two slots top and bottom and one front and back, for a total of 6 t-slots per cross bar. All the t-slots run the length of the bar, so you can mount anything anywhere. The cross bars utilize drop in t-slot hardware (links below) and supplied by us. Typical t-slot nuts will accommodate an M8-1.25 thread and slide perfectly to any location you need.

Uprights:

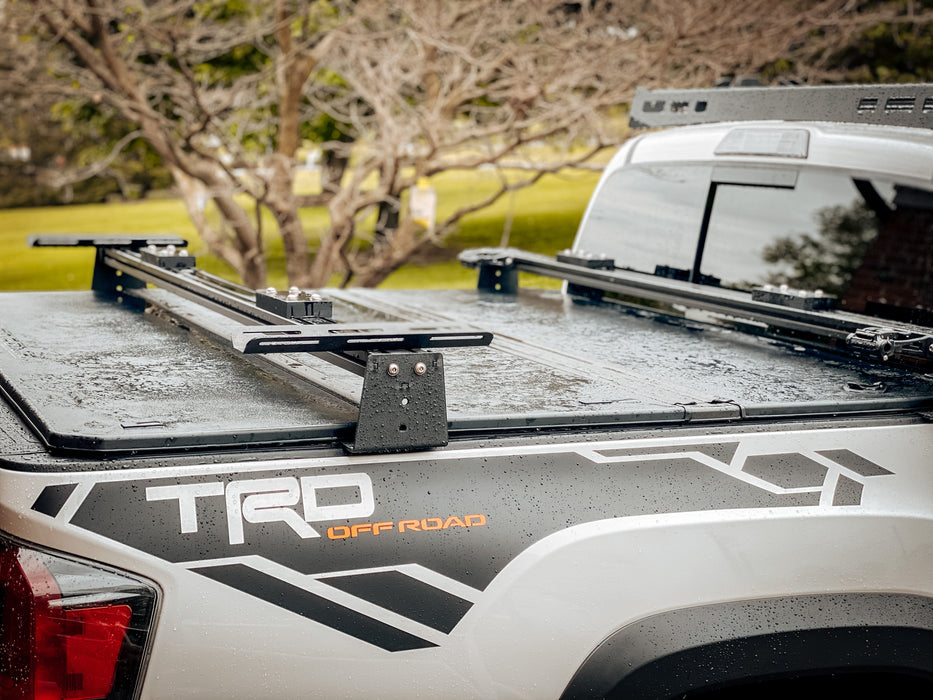

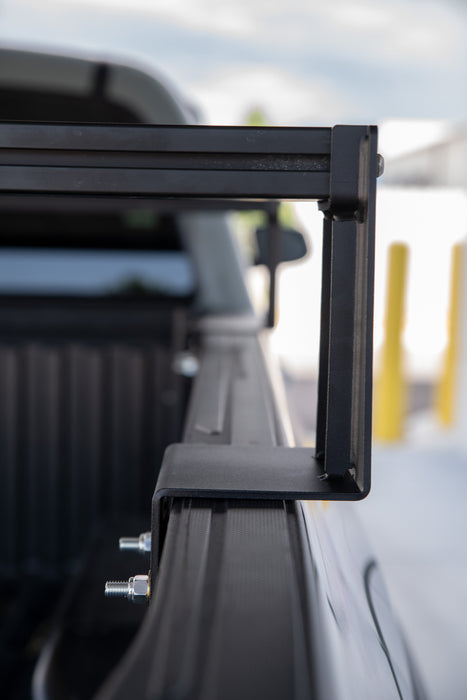

Uprights are laser cut from a high strength steel, CNC bent, then TIG welded and powder coated in a durable black wrinkle finish.  The uprights mount directly to the Tacoma bed rail system using supplied t-nuts and high strength zinc coated hardware.

Hardware:

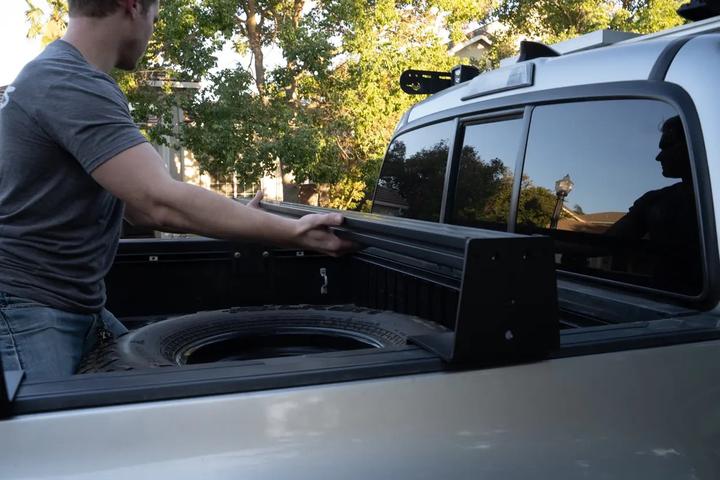

All external hardware is high strength stainless steel.  There are 4 security bolts (TT40 bit) that hold each cross bar to the upright. Just remove the bolts to the bars and the cover can flip open with the uprights still mounted.

**If you have relocated utility tracks, such as the BakFlip covers, select Tacoma with BakFlip Covers option. Small trimming may be required depending on date of manufacture for BakFlip.**
