Baja Designs Prinsu/Sherpa Roof Rack 7 XL Linkable Light Bar Kit

3 reviews
$1,596.95
Stock:
In stock

Description:

So you've got a Prinsu rack and you want to mount an LED light bar? We've got you covered! The Prinsu racks come with the option for a 40" light bar cutout, for users with this option we've created a turn key kit that includes everything you need to get a performance based lighting solution. This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories we include brackets that are proprietary to Prinsu's rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all inclusive kit that will compliment your Prinsu rack along with giving you some serious night time lighting performance.

IN STOCK, FAST SHIPPING!

Note: If you did not purchase a Prinsu rack with the 40" Light Bar cutout option we have included instructions on how to cut your existing panel.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W / 14A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Application:

  • Any Prinsu Rack

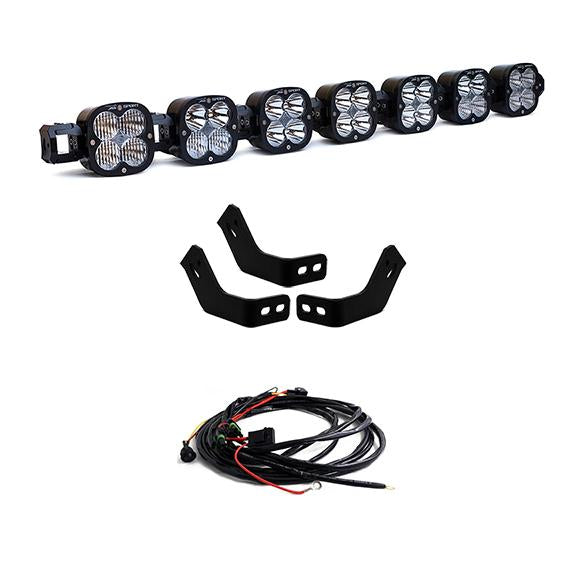

Includes:

  • x3 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x7 XL Sport Rock Guards
  • Pre-load Center Bracket
  • XL Linkable Harness

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
