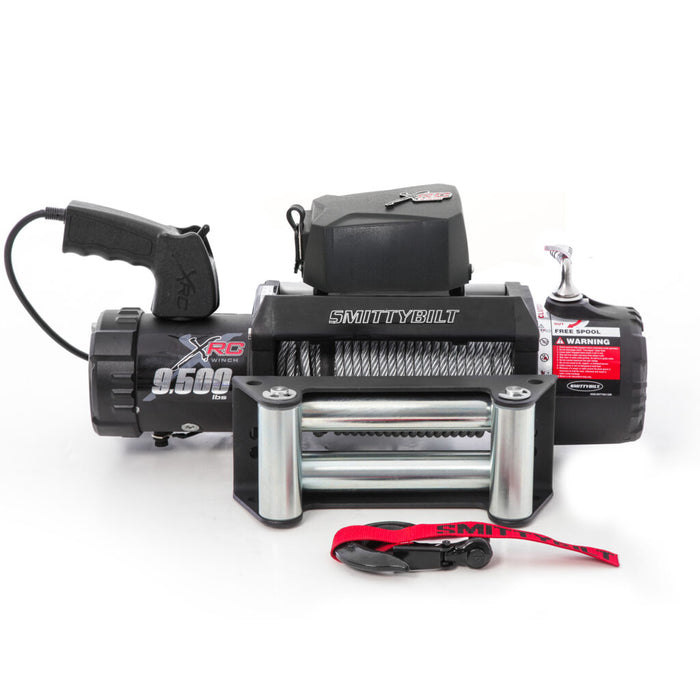

Smittybilt XRC Gen 2 9500LB Winch W/ Steel Cable

Smittybilt XRC Gen 2 9500LB Winch W/ Steel Cable

$359.00

The Smittybilt XRC Gen 2 winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC series winches can handle any situation you can get into. Every XRC winch features a series wound 6.6 hp motor and a 3-stage planetary gear system with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is offered in a sleek and stylish finish, including a rugged UV-resistant matte black coating with stainless steel hardware and oversized Aluminum crossbars to provide you with a great looking system that ensure last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.

  • IP67 waterproof
  • 4-way roller fairlead
  • Rated Line Pull: 9,500Lbs (4,309kgs) single-line
  • Wired remote control with 11.5' Lead
  • 6.6HP series-wound motor
  • Recommended Battery: 650CCA minimum for winching
  • 5' battery power cables
  • 3-stage planetary gearbox
  • 161.28:1 gear ratio
  • Weight 99lbs
  • Sliding ring gear clutch
  • 2.5" drum diameter
  • Bolt Pattern: 10" x 4.5 "
  • Brake: Automatic In-Drum
  • Dimensions: 22.3" L x 5.4" W x 9.4" H
  • 5/16" x 93.5' steel cable
  • 3-Year Electrical / Limited-Lifetime Mechanical Warranty

SB97495
